Exterior Waterproofing & French Drains in Lima, OH

What exterior waterproofing involves

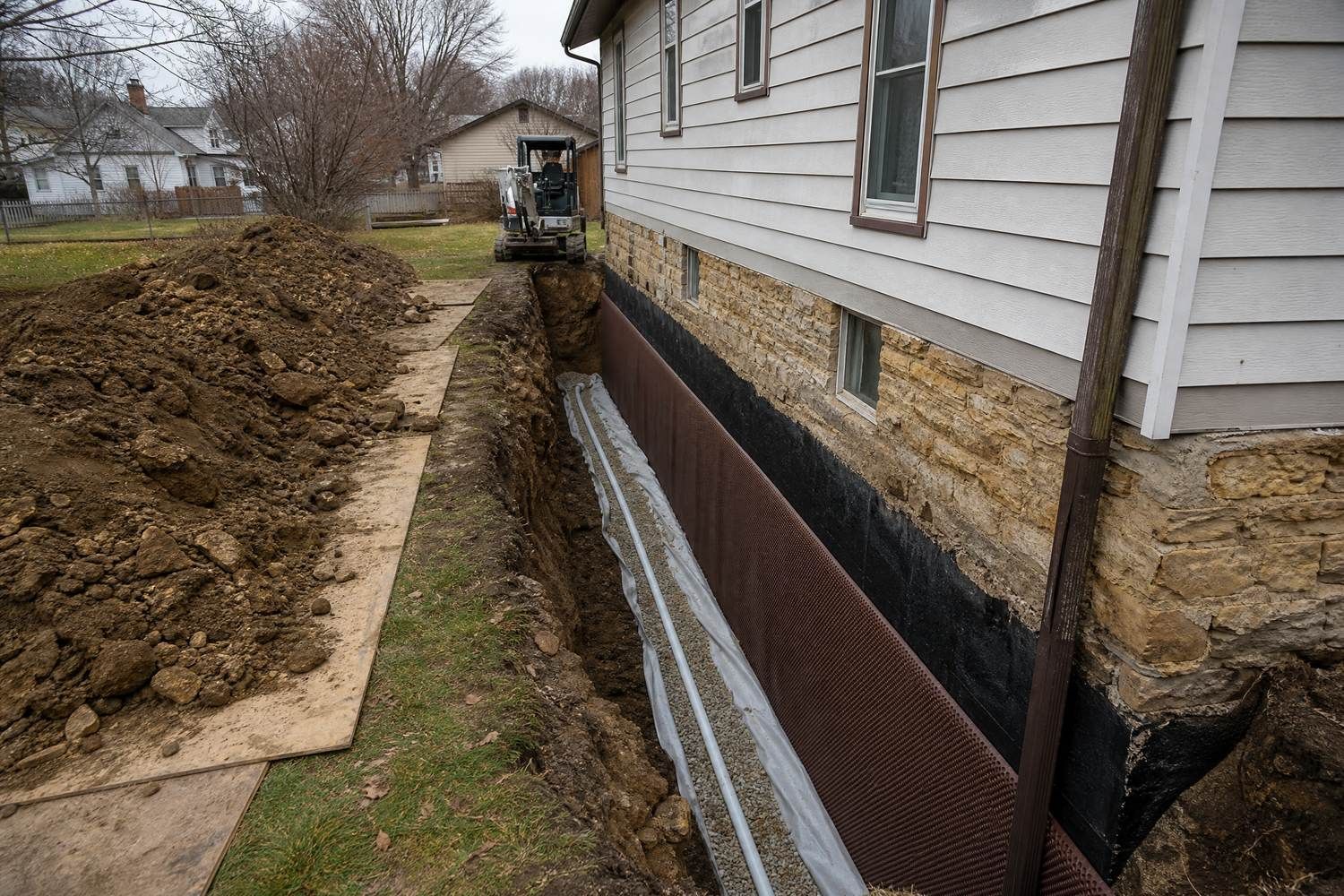

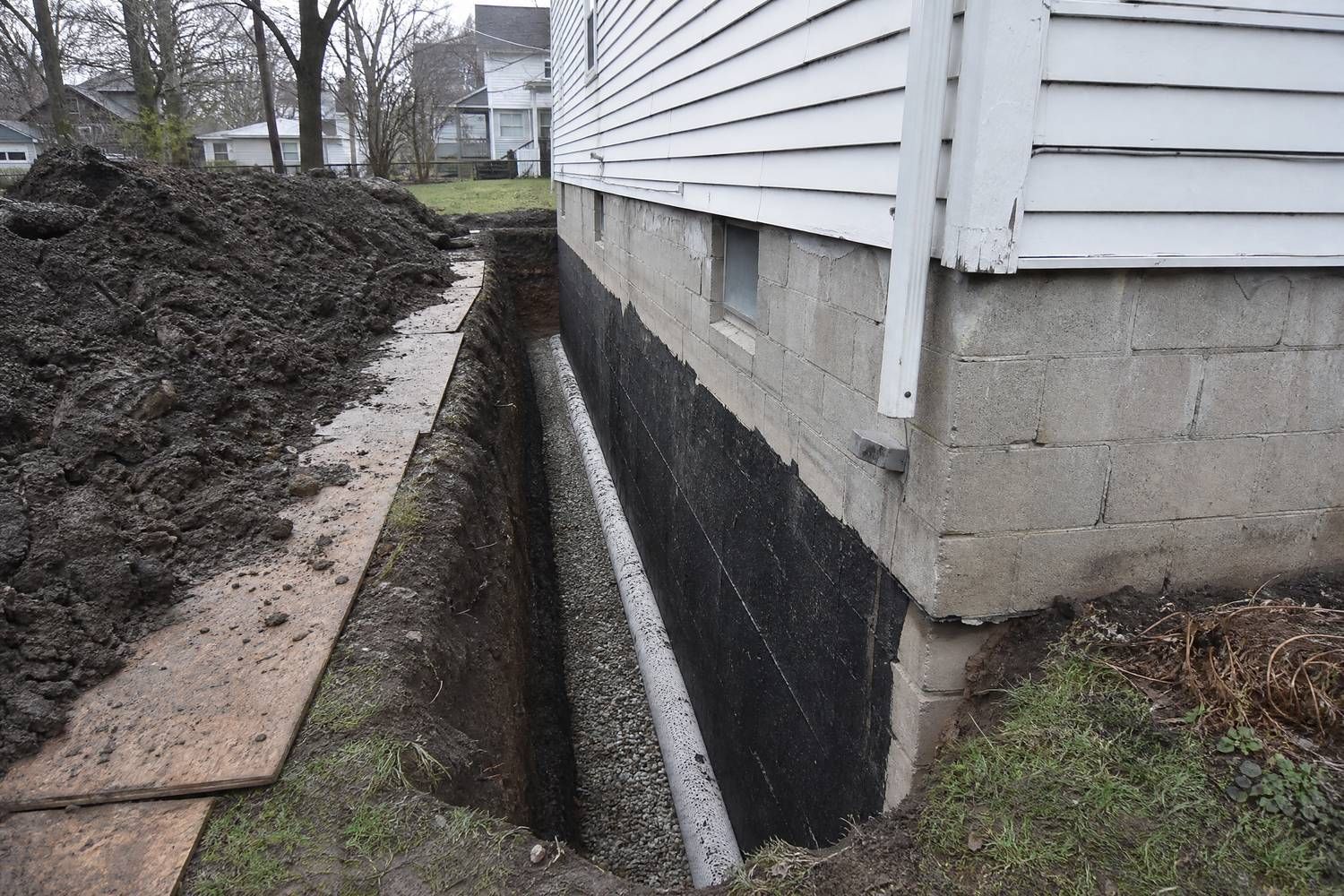

We excavate along the foundation all the way down to the footing — in Lima that is typically seven to eight feet, and the depth is what drives the cost. With the wall exposed we clean it, repair any damaged block or mortar, and apply a waterproofing membrane rather than a damp-proof coating. The distinction matters: damp-proofing is a spray that resists moisture vapour, while a membrane is a continuous barrier designed to hold back liquid water under pressure. At the base we lay perforated drain pipe in washed gravel wrapped in filter fabric, sloped to daylight or to a sump, so water reaching the footing is carried away instead of pooling against it.

Backfill is the step that quietly decides whether the job works. Putting the original clay straight back against a new membrane recreates the problem — clay holds water against the wall and it swells when saturated, which is what pushes block walls inward in the first place. We backfill the lower portion with free-draining granular material so water moves down to the drain tile rather than sideways into the wall, then finish with soil graded to fall away from the house. Downspouts get extended out past the excavation, and window wells get their own drainage tied into the system. Skipping any of that is how an expensive job ends up performing like a cheap one.

When exterior waterproofing is the right answer

These are the situations where interior drainage will not be enough on its own.

• Water running down the inside face of the wall during heavy rain, well above floor level
• A block wall that keeps refilling with water after the cores have been drained and joints repointed
• Grading that cannot be corrected from the surface because the finished grade is above the interior floor
• A wall showing inward deflection, where relieving soil pressure is part of the structural fix
• You are finishing the basement and want the wall dry rather than managed
• Interior drainage has already been installed correctly and water is still entering above the floor


  Other Services

• Interior Drainage & Sump Pumps
• Block Wall & Foundation Repair
• Crawl Space Encapsulation
• Basement Waterproofing Cost


Why surface water reaches Lima foundations

The ground here does not absorb rain quickly, and that single fact explains most exterior water problems in Lima. Clay loam over glacial till has very low permeability, so during a heavy storm water does not soak in — it sheets across the surface looking for the lowest point. If the grade around your house has settled over sixty or eighty years, which it almost always has, that lowest point is the foundation wall. Once water is sitting in the backfill against the wall it stays there, because clay holds it. A block wall in that condition is under continuous hydrostatic pressure from outside, and the mortar joints are the weak line.

The rainfall record makes the point better than any argument. In June 2015, Lima took 7.87 inches in a single week, including 3.68 inches in one twenty-four hour period that broke a date record standing since 1912. What mattered was the sequence: 1.66 inches on the Saturday and 1.22 on the Sunday had already saturated the ground before the main event arrived, so the clay had nowhere left to put it. The Ottawa River crested at 21.20 feet, an all-time record, and the United Way building on South Collett Street — roughly fifty years old and never flooded before — took more than two feet of water. When a building goes half a century without trouble and then floods, the story is not that the building changed. It is that the ground reached its limit.

What affects the cost of exterior waterproofing in Lima

Excavation depth and access dominate the price on this service. Full ranges are on our cost page.

• Depth to the footing — seven to eight feet is typical here, and every foot adds spoil to handle
• Linear footage of wall being excavated, and whether it is one elevation or a full perimeter
• Access for equipment — a narrow side yard or a fence line can force hand digging
• Obstructions over the dig line: decks, patios, driveways, AC units, mature trees and shrubs
• Utility locations, since gas, water and sewer laterals crossing the trench have to be worked around
• Restoration — replacing landscaping, hardscape or driveway that had to come out


Interior or exterior — which one you actually need

The honest framing is that these are not competing products, they are answers to different questions. Interior drainage manages water that is already arriving from below, which in Lima usually means a perched water table sitting above the basement floor. You cannot lower a regional water table by digging outside, so if water is coming up through the slab or in at the wall-floor joint, exterior waterproofing does not address the mechanism — and it costs several times more. Anyone who quotes excavation for a floor-level water problem without explaining why is selling the bigger job rather than the right one.

Exterior is the correct answer when water is arriving from outside above floor level: running down the wall face during rain, entering through block cores partway up the wall, or continuing after grading and downspouts have already been corrected. Where Lima gets genuinely complicated is a hollow block wall in clay taking water from both directions at once, which is common in the postwar housing stock. Sometimes the right recommendation really is both, and sometimes it is exterior on the one elevation that faces the slope with interior drainage handling the rest. That is a judgement made standing at the wall, not on a phone call.

Our step-by-step process

• STEP 1

On-site diagnosis confirming water is entering from outside above floor level, not rising from below

• STEP 2

Written fixed-price quote covering excavation, membrane, drainage, backfill and restoration

• STEP 3

Utility locates called and permits pulled before any digging starts

• STEP 4

Excavation to the footing, with spoil staged where it will not wash back into the trench

• STEP 5

Wall cleaned, block and mortar repaired, then waterproofing membrane applied as a continuous barrier

• STEP 6

Perforated drain pipe bedded in washed gravel with filter fabric, sloped to daylight or a sump

• STEP 7

Granular backfill in the lower trench, soil above it graded to fall away, downspouts extended past the dig

• STEP 8

Inspection, landscaping or hardscape restored, and a walkthrough of what was installed

Timeline and what to expect

Three to five days for one or two elevations, longer for a full perimeter. This is the most disruptive service we offer and it is worth knowing that before you commit — there will be an open trench beside your house, heavy equipment on the property, and a section of yard that looks destroyed until restoration. It is also the one job that genuinely depends on weather. An open trench in Allen County clay and a heavy rain do not mix, because the trench fills, the walls slump, and the membrane cannot be applied to a wet surface. We watch the forecast and we will delay a start rather than open a hole ahead of a storm. Membrane needs a dry wall to bond, so a wet week pushes the schedule and there is no way around that.
